SPECIFICATIONS

Note

US has inventories. Fast Delivery. No Tariff.

Quality

Same as other suppliers.

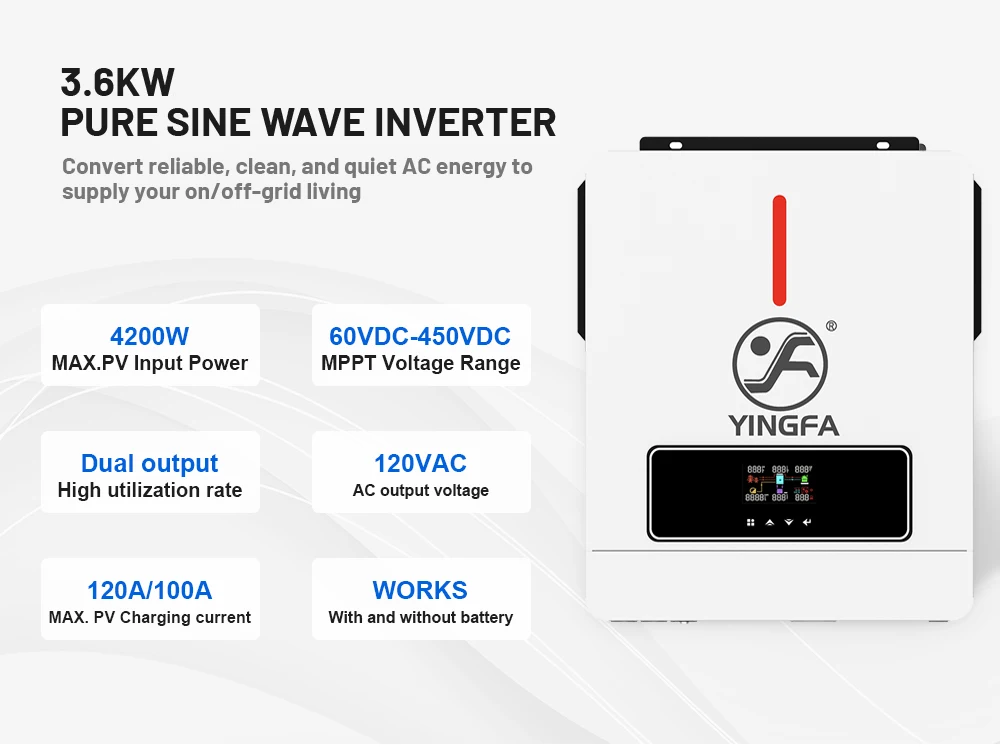

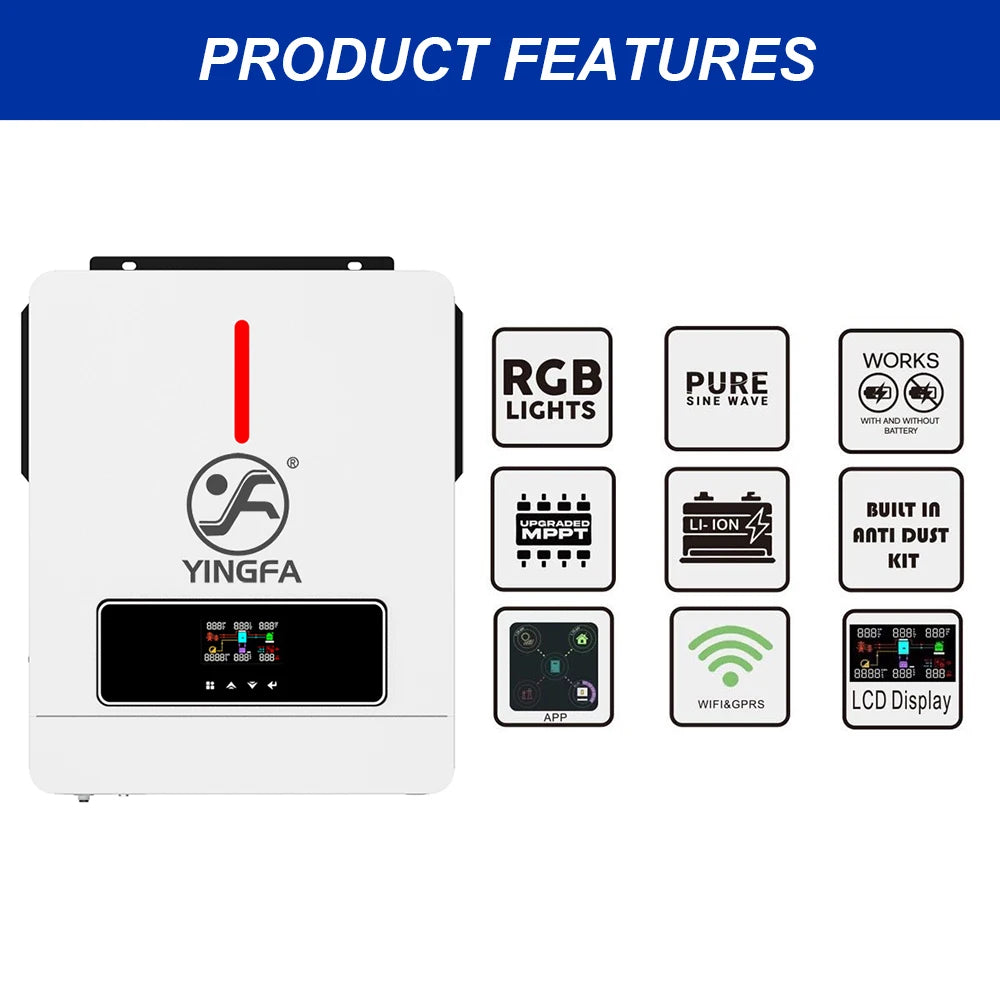

Key Function

It can work with or without battery. Both mode is workable.

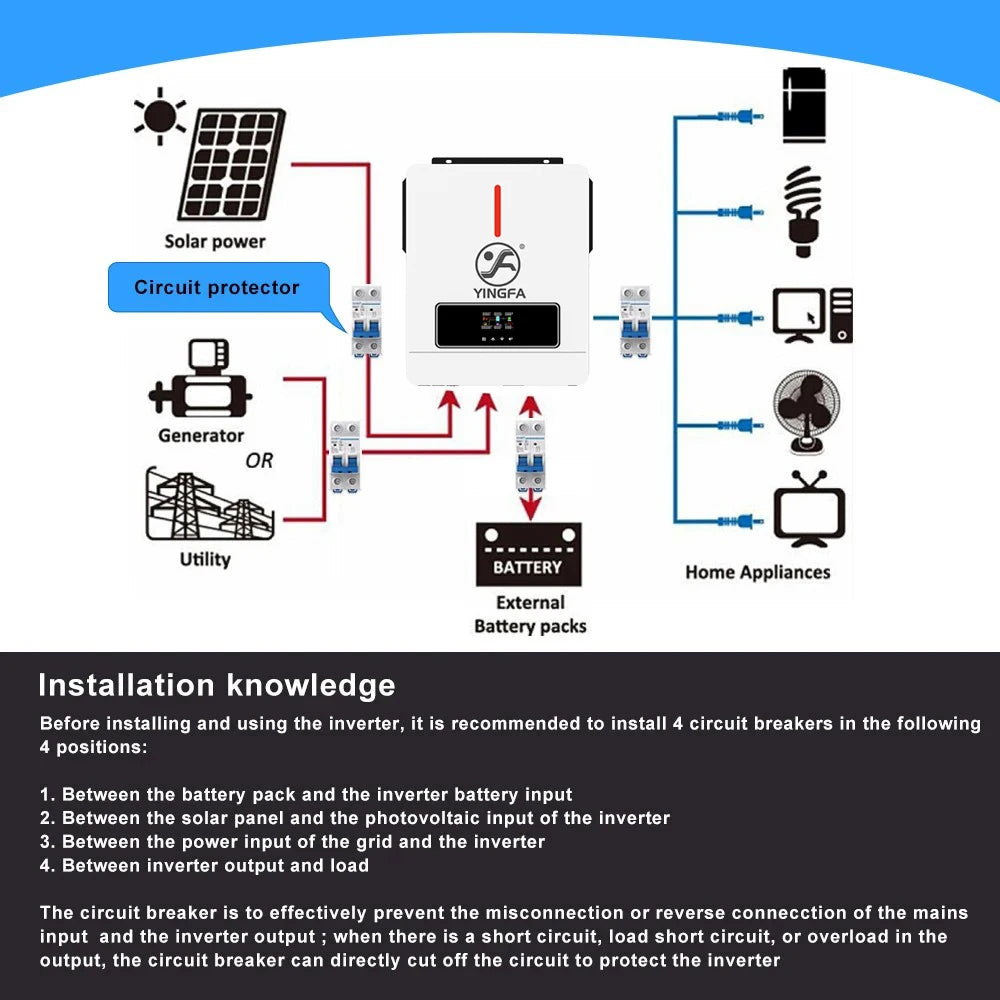

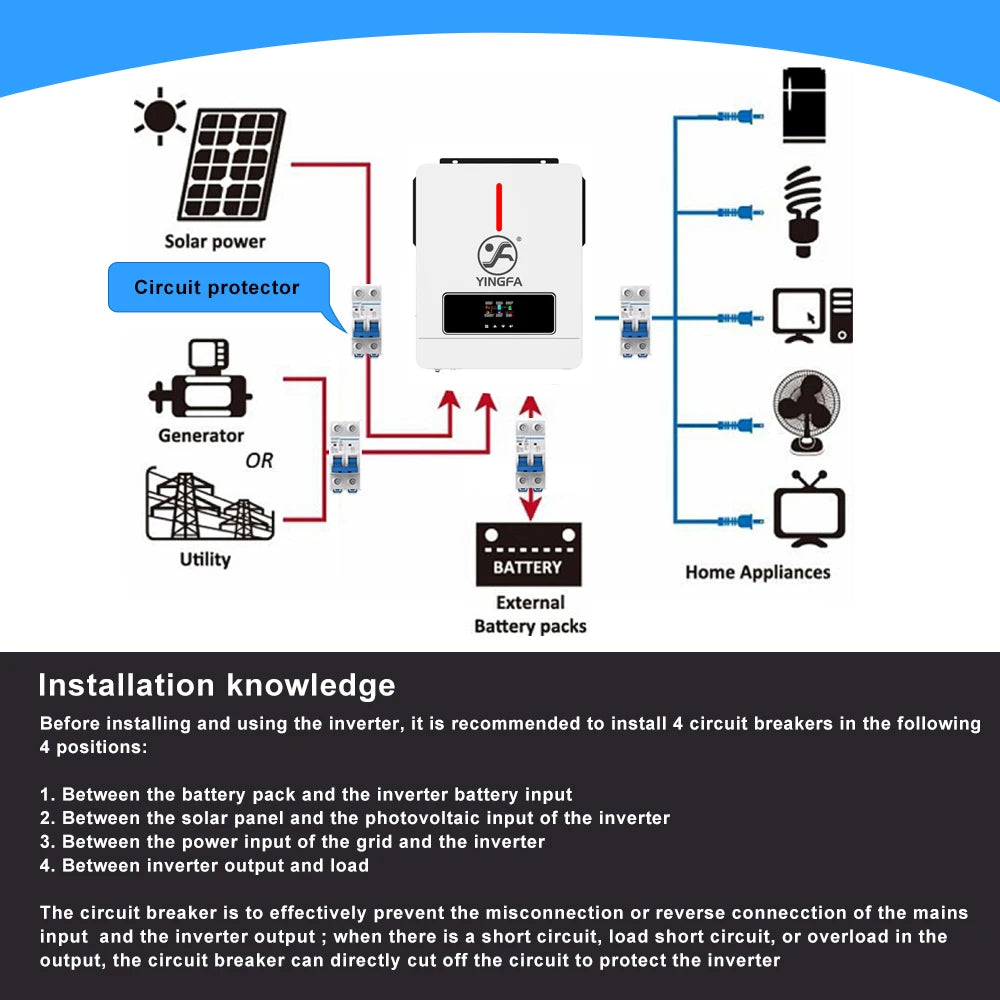

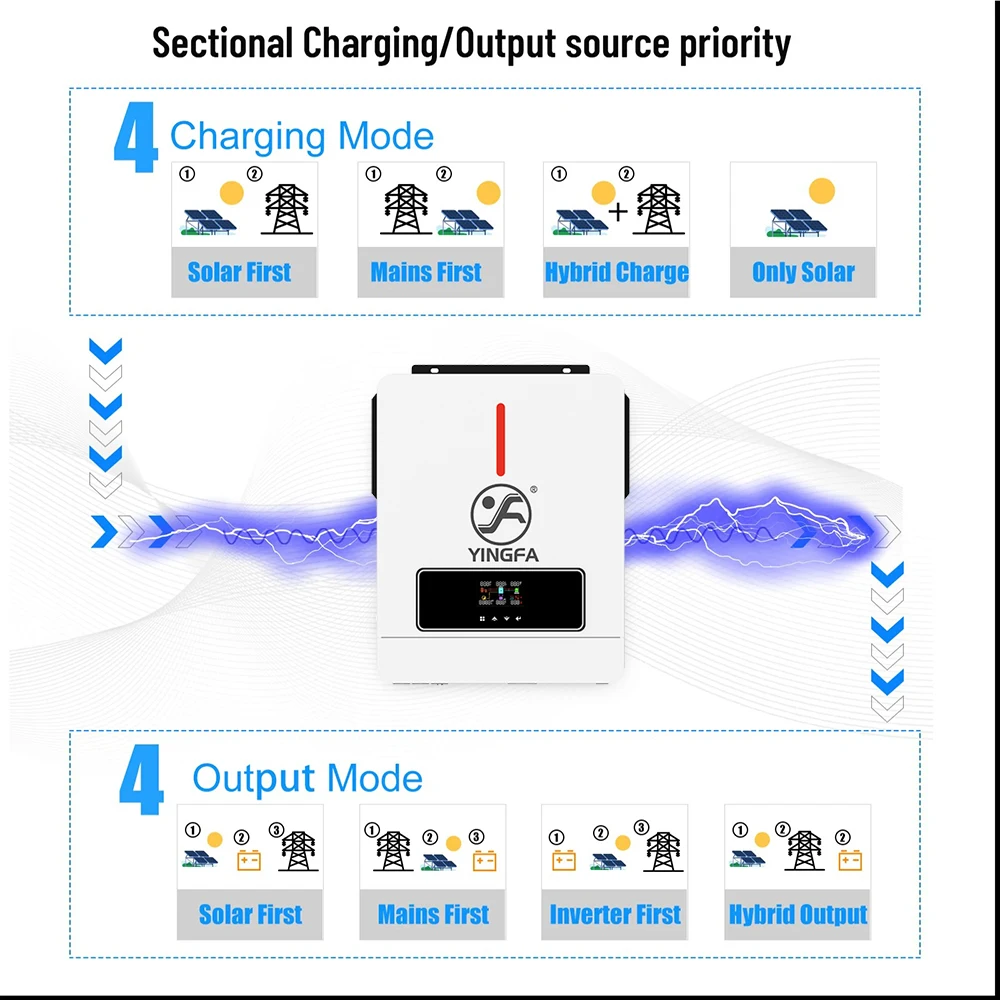

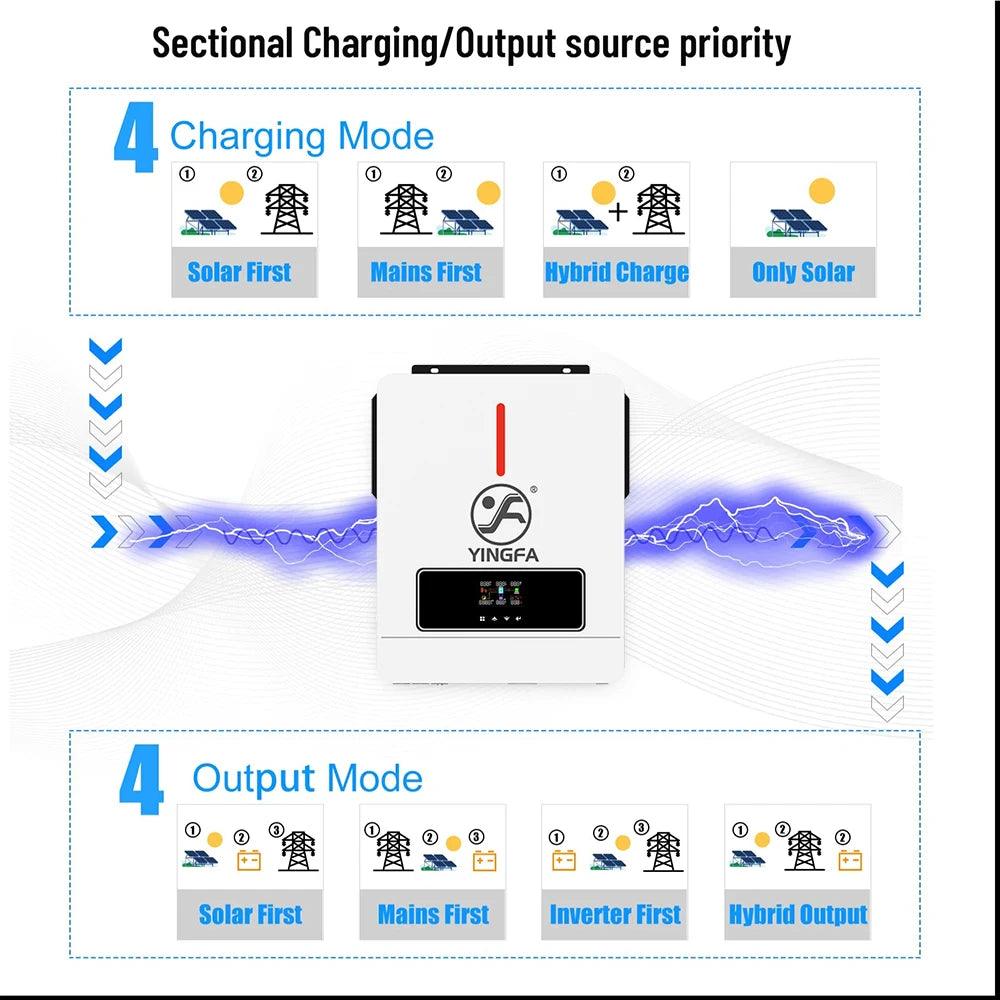

It can use PV electricity, grid electricity and battery electricity for home load.

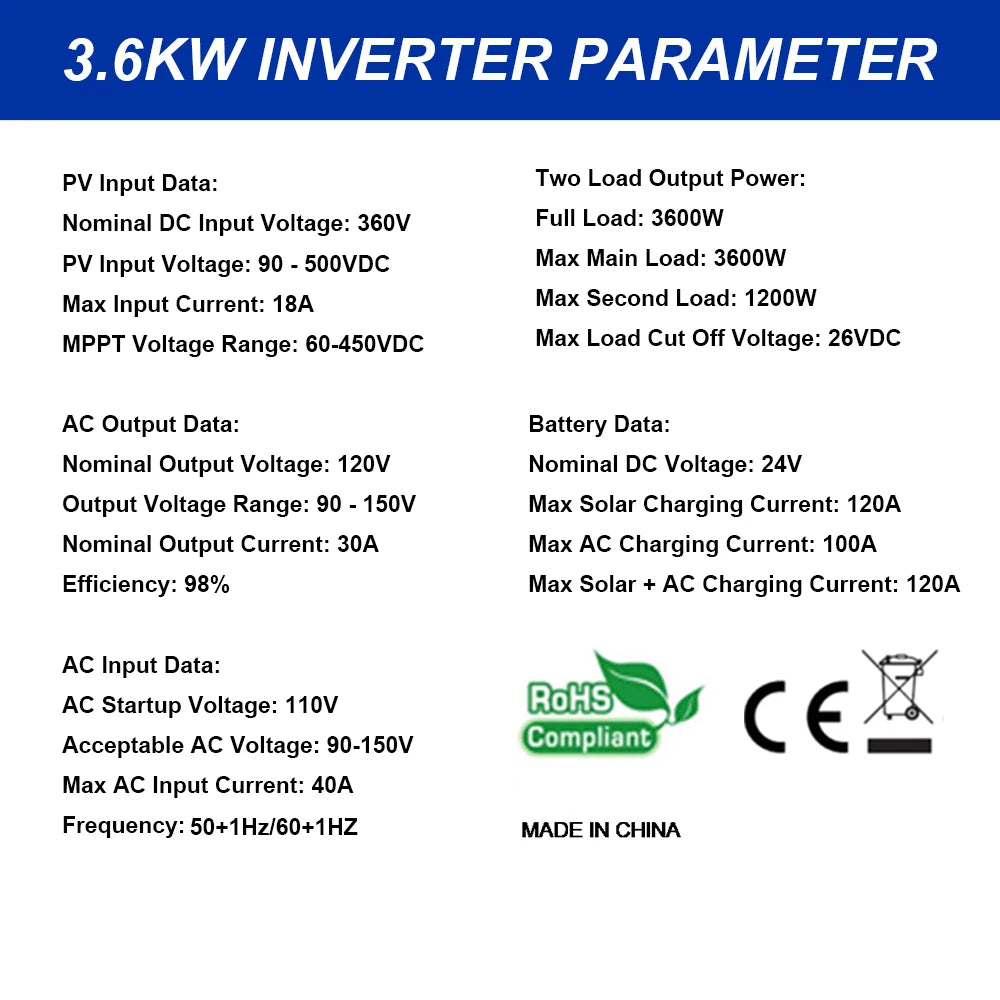

Product Parameter

PV INPUT(DC)
Nominal DC Voltage: 360VDC
Maximum DC Voltage: 500VDC
Start-up Voltage: 60VDC
Initial Feeding Voltage: 90VDC
MPPT Voltage Range: 60~450VDC
Maximum Input Current: 1/18A

GRID OUTPUT(AC)
Nominal Output Voltage: 120VAC
Output Voltage Range: 90-150VAC
Nominal Output Current: 30A
Power Factor: >0.99

EFFICIENCY
Maximum Conversion Efficiency: 98%

TWO LOAD OUTPUT POWER
Full Load: 3600W
Maximum Main Load: 3600W
Maximum Second Load (battery mode): 1200W
Maximum Load Cut Off Voltage: 26VDC
Maximum Load Return Voltage: 27VDC

AC INPUT
AC Start-up Voltage: 110VAC
Auto Restart Voltage: 120VAC
Acceptable Input Voltage: 90~150VAC+2%
Frequency Range: 50+1Hz/60+1HZ
Maximum AC Input Current: 40A

BATTERY MODE OUTPUT (AC )
Nominal Output Voltage: 120VAC

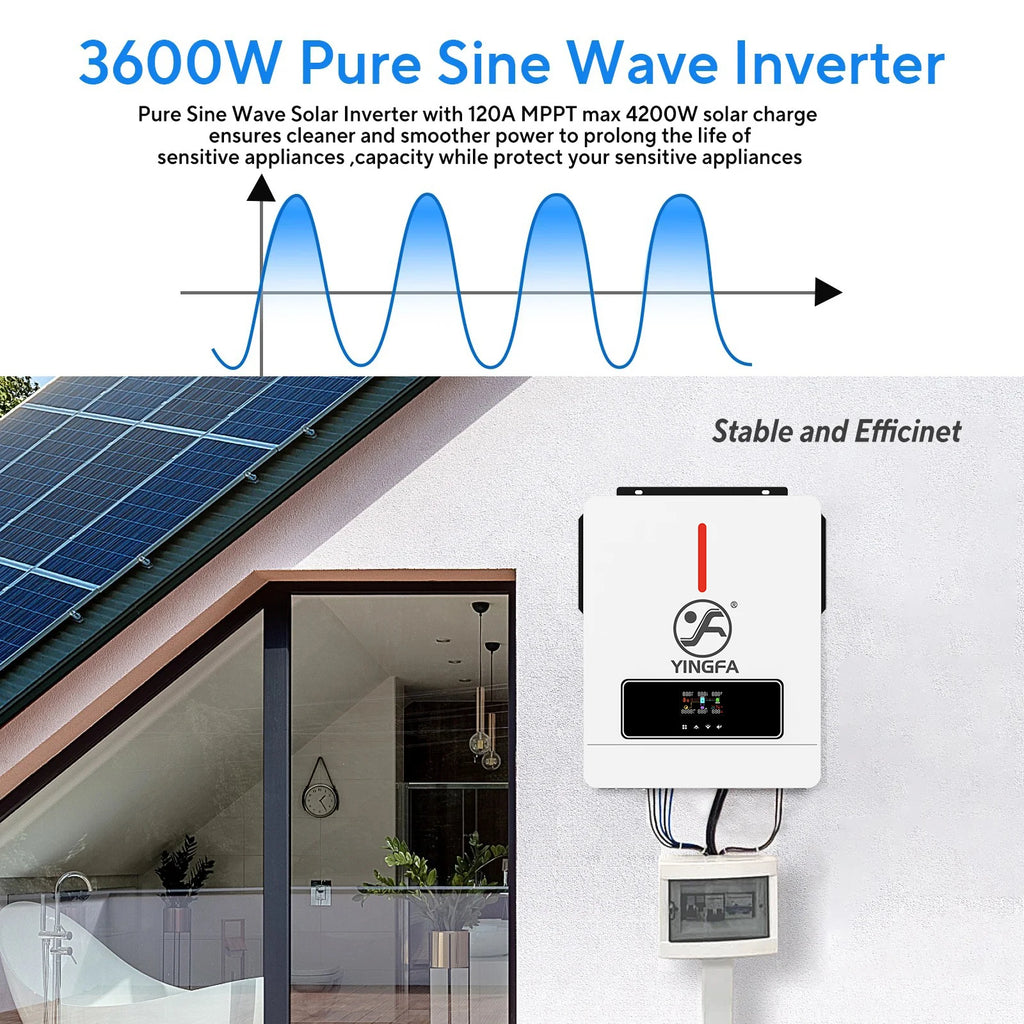

Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 94%

BATTERY & CHARGER
Maximum AC Charging Current: 100A
Nominal DC Voltage: 24VDC
Maximum Solar+AC Charging Current: 120A

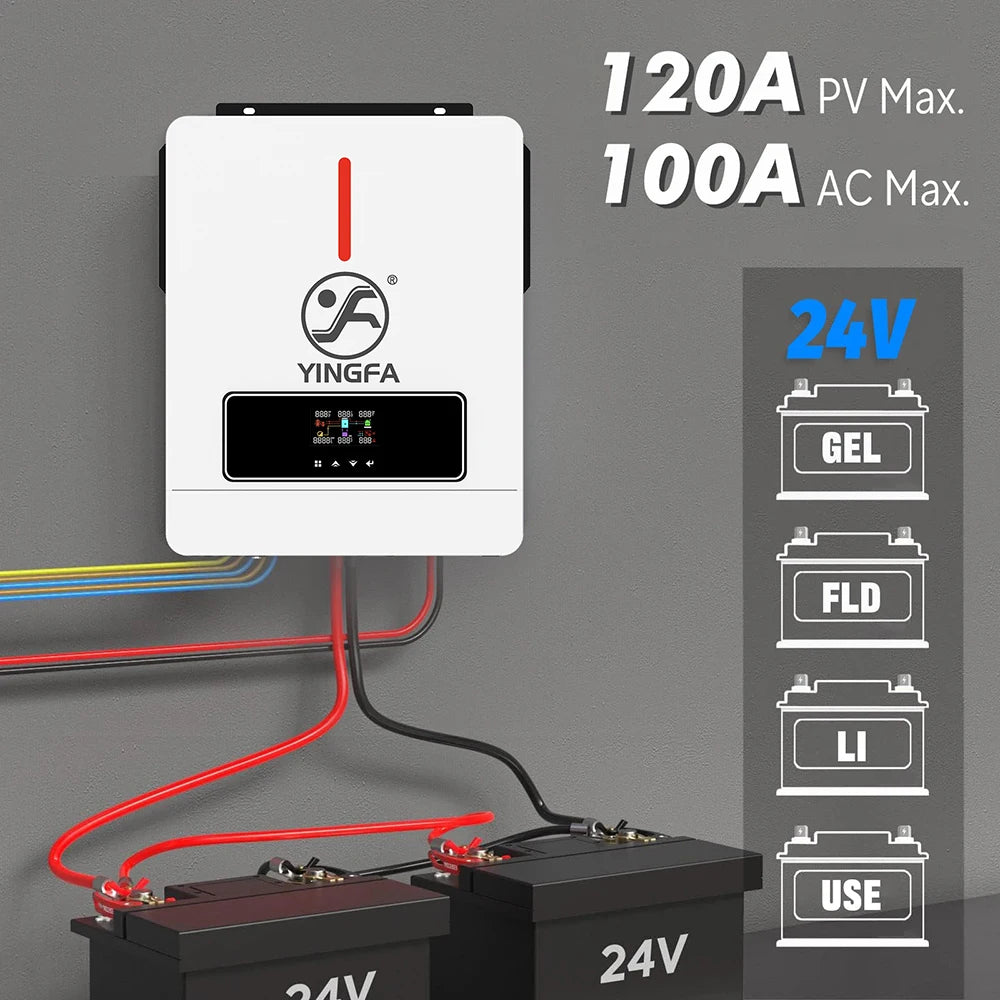

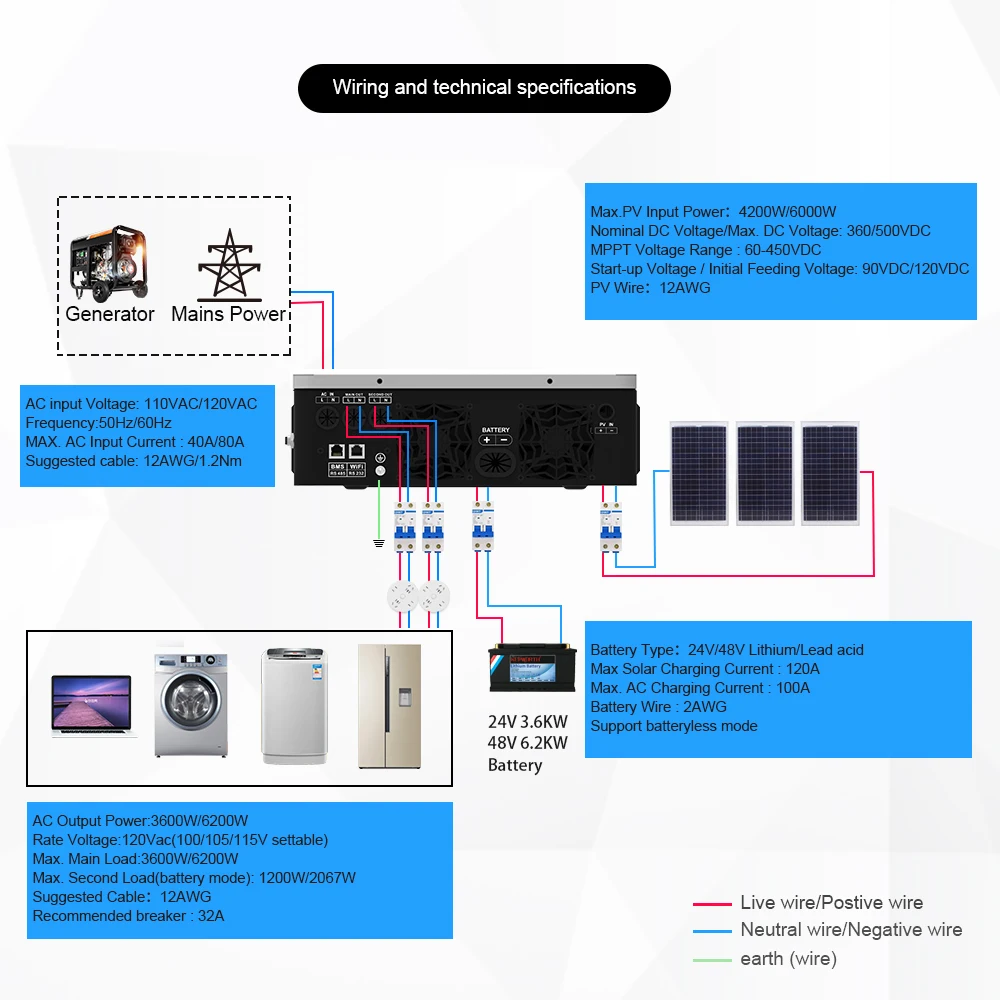

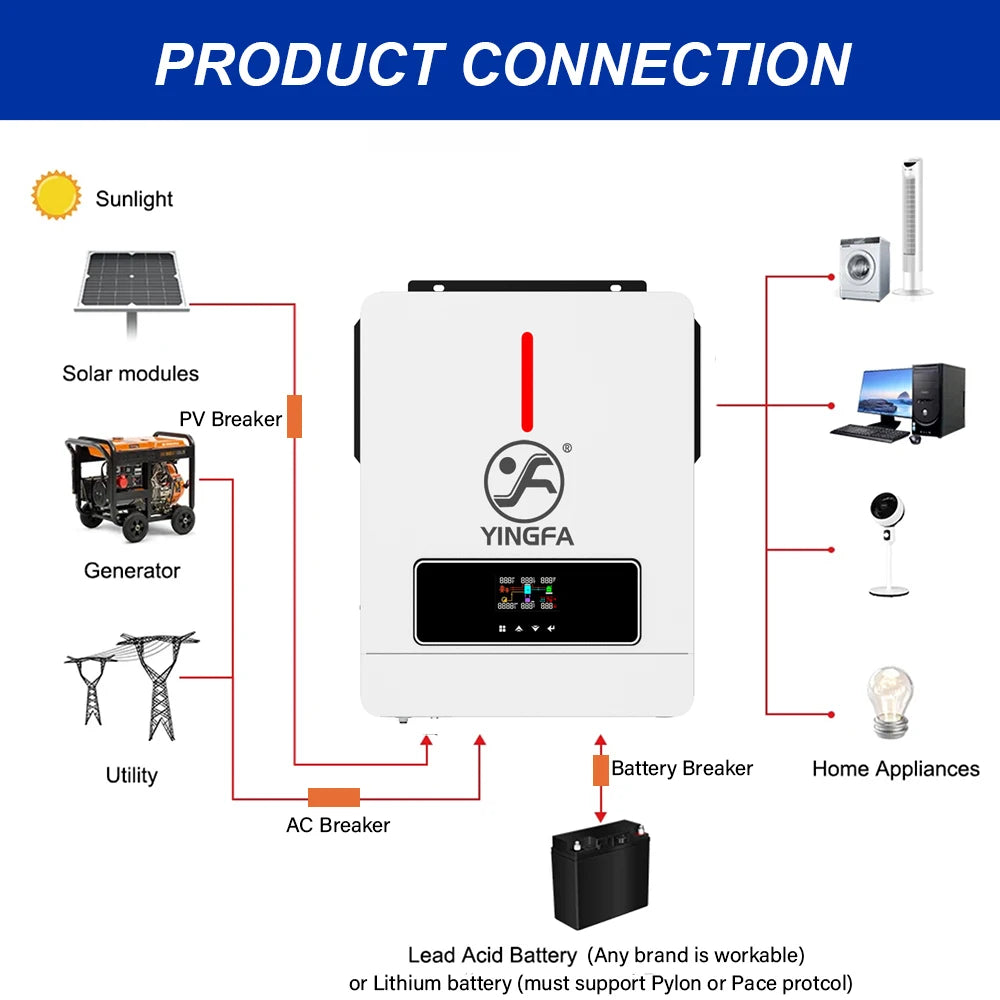

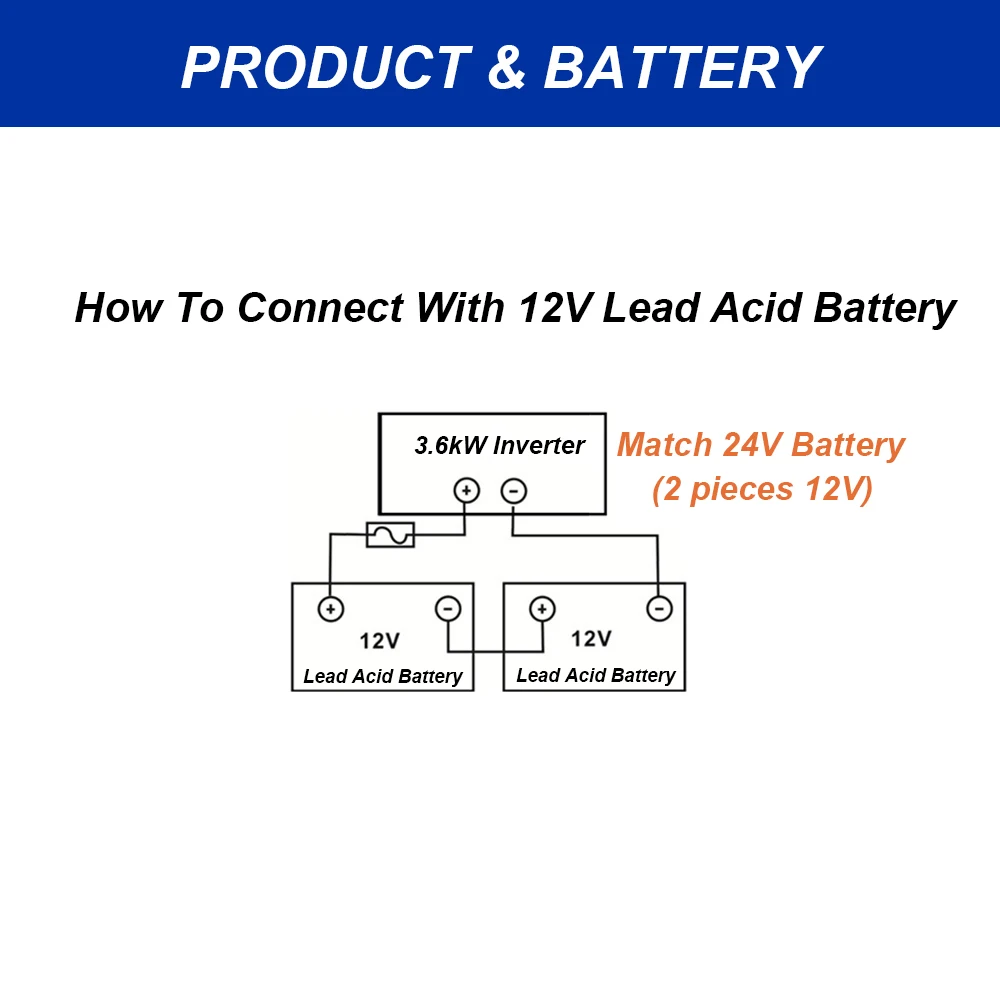

Battery Connection

A. Lead Acid Battery, easy to connect, low cost. (Recommend, any brand is ok.)
3.6kW inverter: connect to 2 pieces 12V battery.

B. Lithium battery.

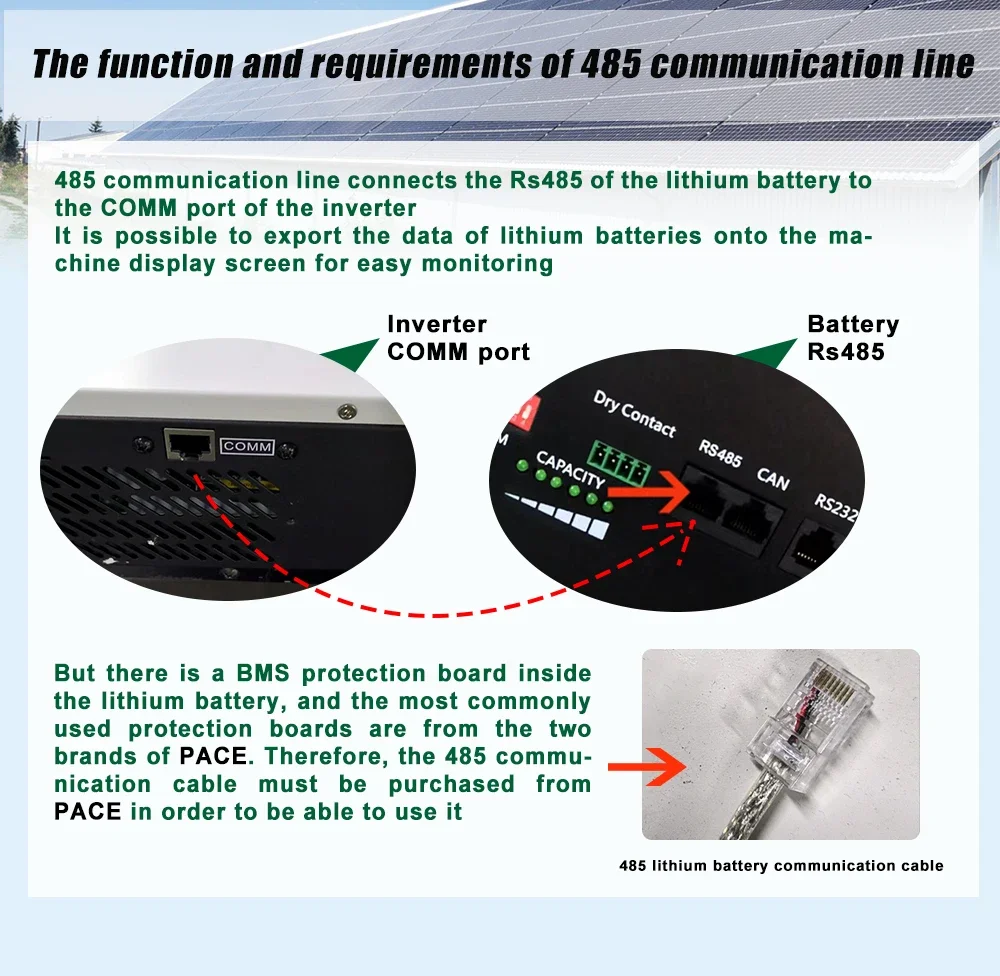

Must support Pylon or PACE BMS communication protocol.

If Battery Necessary

Our inverter can work without battery.

After-sale Service

1. 1-year warranty
2. Technical support within 12 hours.
